瀏覽器自帶分享功能也很好用哦~1.鋁合金面框與散熱板，噴砂氧化工藝，抗UV防變色處理，散熱板開口可裝卸M.PCIE模塊，整機IP65防水;
2.工業級液晶屏，全視角，1000亮度陽光下可視，PWM軟件調節亮度;
3.10點電容觸摸屏，保護層是1.8mm鋼化玻璃（化學強化），硬度達到6H;
4.EETI觸摸控制方案，在觸摸屏有水滴的情況下正常觸摸;
5.自定義防水接口，接口1包含DC輸入，一個RS232和一個USB;
6.采用工業級元件，7x24小時工作，支持寬溫工作-20-70℃;
7.前框與后殼使用防水膠條進行密封，可以拆機檢查維修而不影響防水性能。
在線表單
在線詢價PC System | |
處理器 Processor | Intel? Gemini lake J4125 Processor 4 核 4 線程 2.0 GHz~2.7 GHz |
芯片組 Chipset | Intel? Gemini Lake |
內存Memory | 8G DDR4-2400/2133 |
存儲Storage | 128G SSD |
顯卡Graphics | Intel? UHD Graphics 600 |
音頻Audio | 板載音頻解碼控制器 |
網卡Network | 1*Realtek RTL8106E 千兆網卡 |
無線網絡Wireless | WIFI + Bluetooth 4.0 |
預安裝操作系統Preinstalled OS | Window10 pro |
I/O接口 External I/O Ports | |
Connector1 | 9-36vDC+RS232+USB |
Connector2 | USB |
Connector3 | RS232 |
Connector4 | RJ45 |
Other | 1*IP65 Power on/off button,1*ip65 WIFI antenna jack male 1*IP65 BT antenna jack male |
液晶屏LCD Panel | |
尺寸Screen diagonal | 11.6" |
顯示區域Display active area | 256.13(W)×144(H) mm |
分辨率Resolution | 1920*1080 |
寬高比Aspect ratio | 16:9 |
亮度Brightness (cd/m2) | 1000 nits |
亮度調節Brightness control | PWM軟件調節 |
對比度Contrast ratio | 900:1 |
可視角度View angle | 88°/88°/88°/88° (R/L/U/D) |
顏色數量Support color | 16.7M |
背光 Backlight | WLED, 50K hours |
觸摸屏Touch Panel | |
觸摸屏類型Touchscreen type | 10點投射式電容觸摸Projected Capacitive Touch (up to 10 points ) |
表面硬度Surface hardness | 6H |
表面處理Surface treatment | N/A |
透光率Luminousness | ≥85% |
觸控IC Touch controller IC | EETI 81 |
支持系統Available touch drivers | Windows, Linux, Android, Mac |
觸摸屏貼合 Touch bonding | 空氣貼合 |
供電Power Supply | |
工作電壓 Working voltage | DC 9-36V |
功耗 Power consumption | 20W |
適配器Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
外殼Enclosure | |
材質Material | 鋁合金面板，散熱板+鍍鋅冷軋板后殼
|
表面處理Finish | 鋁面框，鋁散熱板：噴砂氧化抗UV防變色處理 后殼：靜電噴粉 |
顏色Color | Black |
安裝方式Mounting | VESA mount 75/100 |
IP等級 IP rating | Full IP65 waterproof |
散熱 Cooling system | Passive - Fanless |
工作環境Operating Environment | |
溫度范圍Temperature range | 工作operating: -20 to 70°C, 存儲storage: -30 to 80°C |
相對濕度Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
抗振動Vibration | GB/T 2423.10-2019 |
抗沖擊 Shock | GB2423.5 |
抗電磁干擾EMC | Class B |
包裝信息Packing Details | |
Product weight | Net weight 3.6kg Gross weight 5.6kg |
Product dimension | 325×230×66mm |
Packing info | 1pcs/ctn 44×16×43cm 5.6kg |
Accessories | 防水自定義線材，防水USB線，防水串口線，防水網線，天線棒 |
Other | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |

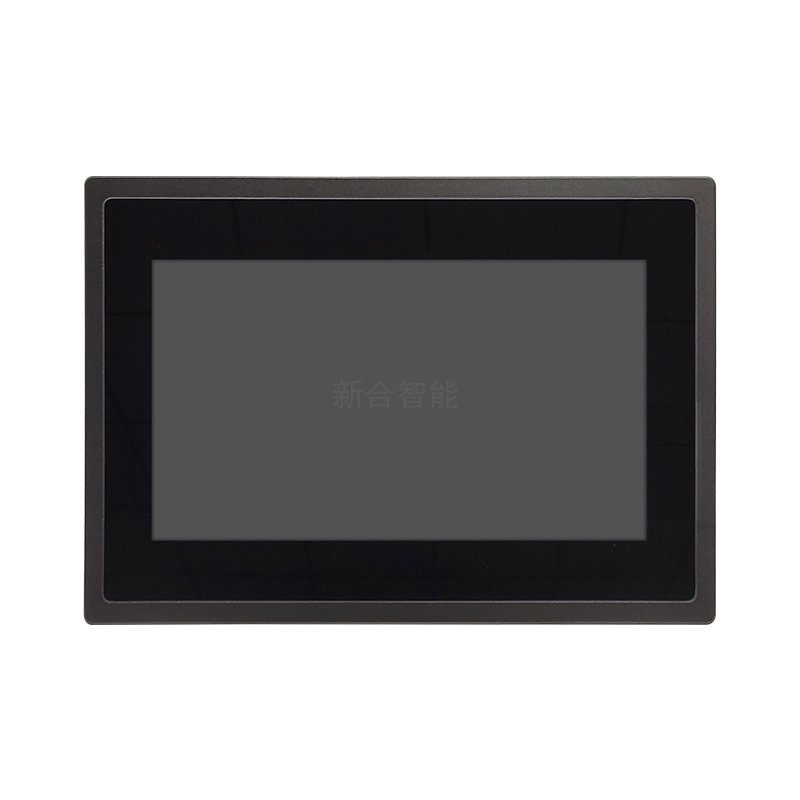

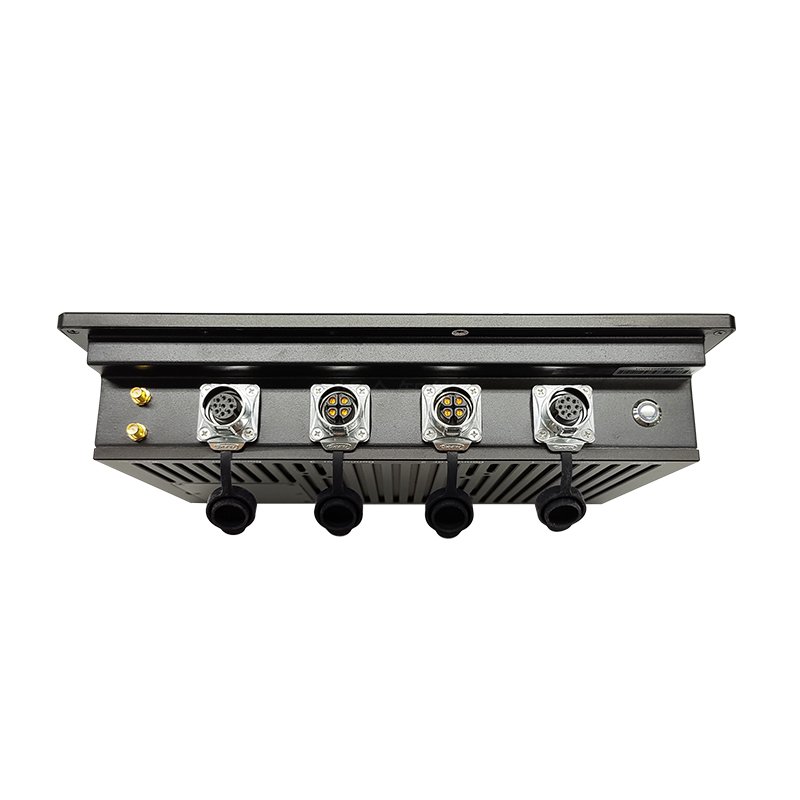

11.6寸IP65整機防水電容觸摸一體機1000尼特高亮度
1.鋁合金面框與散熱板，噴砂氧化工藝，抗UV防變色處理，散熱板開口可裝卸M.PCIE模塊，整機IP65防水;
2.工業級液晶屏，全視角，1000亮度陽光下可視，PWM軟件調節亮度;
3.10點電容觸摸屏，保護層是1.8mm鋼化玻璃（化學強化），硬度達到6H;
4.EETI觸摸控制方案，在觸摸屏有水滴的情況下正常觸摸;
5.自定義防水接口，接口1包含DC輸入，一個RS232和一個USB;
6.采用工業級元件，7x24小時工作，支持寬溫工作-20-70℃;
7.前框與后殼使用防水膠條進行密封，可以拆機檢查維修而不影響防水性能。
在線表單在線詢價PC System | |
處理器 Processor | Intel? Gemini lake J4125 Processor 4 核 4 線程 2.0 GHz~2.7 GHz |
芯片組 Chipset | Intel? Gemini Lake |
內存Memory | 8G DDR4-2400/2133 |
存儲Storage | 128G SSD |
顯卡Graphics | Intel? UHD Graphics 600 |
音頻Audio | 板載音頻解碼控制器 |
網卡Network | 1*Realtek RTL8106E 千兆網卡 |
無線網絡Wireless | WIFI + Bluetooth 4.0 |
預安裝操作系統Preinstalled OS | Window10 pro |
I/O接口 External I/O Ports | |
Connector1 | 9-36vDC+RS232+USB |
Connector2 | USB |
Connector3 | RS232 |
Connector4 | RJ45 |
Other | 1*IP65 Power on/off button,1*ip65 WIFI antenna jack male 1*IP65 BT antenna jack male |
液晶屏LCD Panel | |
尺寸Screen diagonal | 11.6" |
顯示區域Display active area | 256.13(W)×144(H) mm |
分辨率Resolution | 1920*1080 |
寬高比Aspect ratio | 16:9 |
亮度Brightness (cd/m2) | 1000 nits |
亮度調節Brightness control | PWM軟件調節 |
對比度Contrast ratio | 900:1 |
可視角度View angle | 88°/88°/88°/88° (R/L/U/D) |
顏色數量Support color | 16.7M |
背光 Backlight | WLED, 50K hours |
觸摸屏Touch Panel | |
觸摸屏類型Touchscreen type | 10點投射式電容觸摸Projected Capacitive Touch (up to 10 points ) |
表面硬度Surface hardness | 6H |
表面處理Surface treatment | N/A |
透光率Luminousness | ≥85% |
觸控IC Touch controller IC | EETI 81 |
支持系統Available touch drivers | Windows, Linux, Android, Mac |
觸摸屏貼合 Touch bonding | 空氣貼合 |
供電Power Supply | |
工作電壓 Working voltage | DC 9-36V |
功耗 Power consumption | 20W |
適配器Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
外殼Enclosure | |
材質Material | 鋁合金面板，散熱板+鍍鋅冷軋板后殼
|
表面處理Finish | 鋁面框，鋁散熱板：噴砂氧化抗UV防變色處理 后殼：靜電噴粉 |
顏色Color | Black |
安裝方式Mounting | VESA mount 75/100 |
IP等級 IP rating | Full IP65 waterproof |
散熱 Cooling system | Passive - Fanless |
工作環境Operating Environment | |
溫度范圍Temperature range | 工作operating: -20 to 70°C, 存儲storage: -30 to 80°C |
相對濕度Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
抗振動Vibration | GB/T 2423.10-2019 |
抗沖擊 Shock | GB2423.5 |
抗電磁干擾EMC | Class B |
包裝信息Packing Details | |
Product weight | Net weight 3.6kg Gross weight 5.6kg |
Product dimension | 325×230×66mm |
Packing info | 1pcs/ctn 44×16×43cm 5.6kg |
Accessories | 防水自定義線材，防水USB線，防水串口線，防水網線，天線棒 |
Other | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
