處理器 Processor

Intel? J4125 Processor 4 核 4 線程 2.0 GHz~2.7 GHz

內存Memory

4G DDR4 ，最大支持8G

存儲Storage

128G SSD，SATA3.0

顯卡Graphics

Intel? UHD Graphics 600

音頻Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

網卡Network

1*Realtek RTL8106E

RFID

雙頻率RFID 13.56 MHz MIFARE和125 kHz EM

預安裝操作系統Preinstalled OS

Windows 10Pro 64bit

接口

USB

2× USB2.0, 2x USB3.0

LAN

2× RJ45

COM

2x RS232

視頻

1x VGA, 1×HDMI

音頻

1x 3.5mm Line-out, 1 × 3.5mm Line-in

液晶屏LCD Panel

尺寸Screen diagonal

7"

顯示區域Display active area

154.214(W)×85.92(H) mm / 6.071 in × 3.382 in

分辨率Resolution

1024*600

寬高比Aspect ratio

16:9

亮度Brightness (cd/m2)

400 nits

亮度調節Brightness control

PWM亮度調節

對比度Contrast ratio

800:1

可視角度View angle

75°/75°/70°/75° (R/L/U/D)

顏色數量Support color

16.7M

背光 Backlight

WLED, 30K hours

觸摸屏Touch Panel

觸摸屏類型Touchscreen type

電容觸摸

表面硬度Surface hardness

6H

表面處理Surface treatment

N/A

透光率Luminousness

≥85%

觸控IC  Touch controller IC

ILITEK2510

支持系統Available touch drivers

Windows, Linux, Android, Mac

觸摸屏貼合 Touch bonding

空氣貼合

供電Power Supply

工作電壓 Working voltage

DC 12V

功耗 Power consumption

15W

適配器Power adapter

AC 100 ~ 240V input and DC +12V@8A MAX output, 96W

外殼Enclosure

材質Material

鋁合金面板+鍍鋅冷軋板后殼+鋁合金散熱板

表面處理Finish

鋁面框，散熱板：噴砂氧化抗UV防變色處理  后殼：靜電噴粉

顏色Color

Black

安裝方式Mounting

VESA mount 75/100

IP等級  IP rating

Full IP65 waterproof

散熱 Cooling system

Passive - Fanless

工作環境Operating Environment

溫度范圍Temperature range

工作operating: -20 to 70°C, 存儲storage: -30 to 80°C

相對濕度Relative humidity

Up to 90% at all relevant temperatures, non-condensing

抗振動Vibration

GB/T 2423.10-2019

抗沖擊 Shock

GB2423.5

抗電磁干擾EMC

Class B

包裝信息Packing Details

Product weight

Net weight 2.5kg   Gross weight 3.7kg

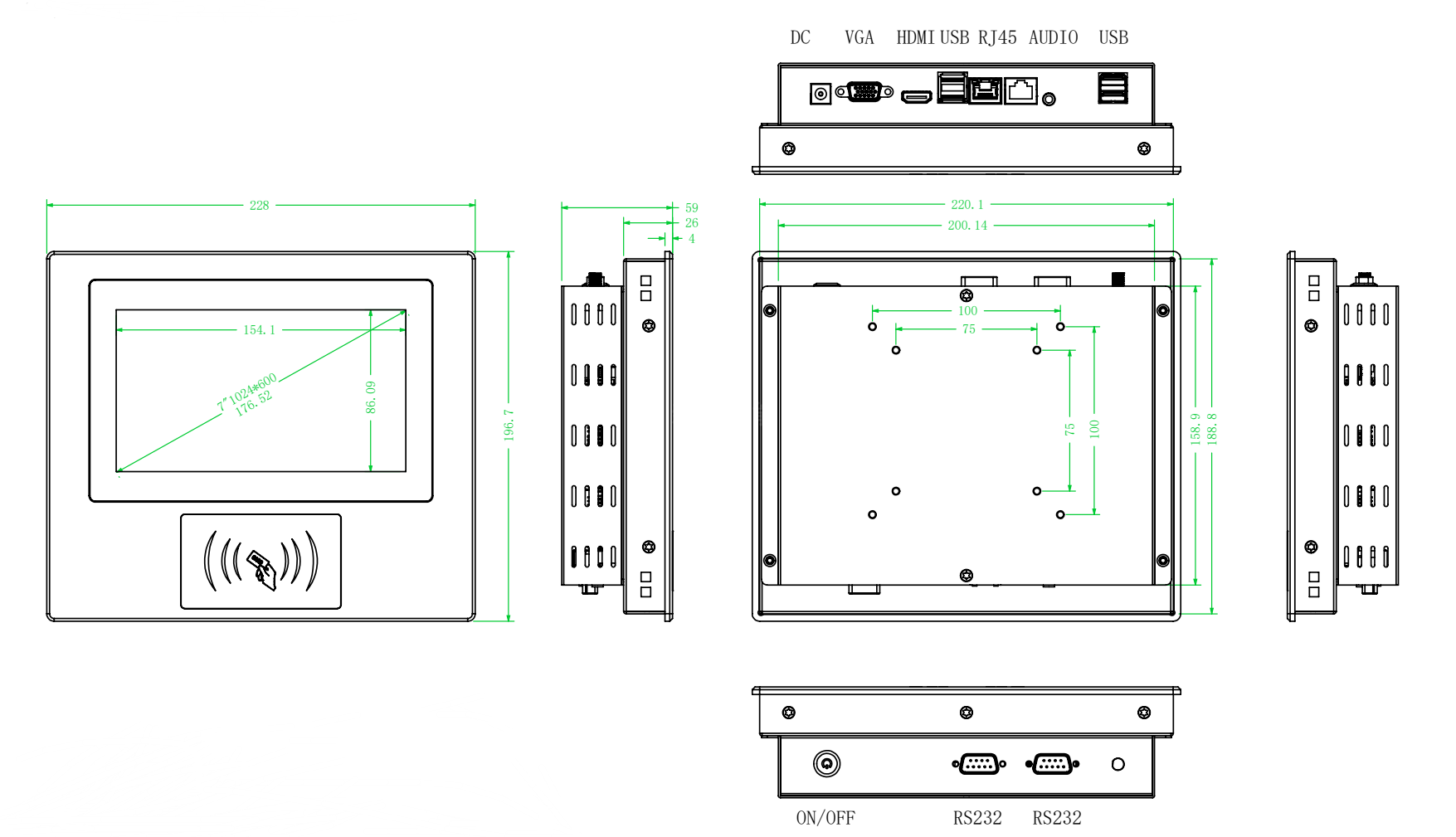

Product dimension

228×196.7×59mm

Packing info

1pcs/ctn  42x16x42cm  4kg

Accessories

電源線，適配器，天線，安裝螺絲

Other

Warranty

1 year warranty

Certificates

CE, FCC, RoHS
