瀏覽器自帶分享功能也很好用哦~1.鋁合金面框噴砂氧化工藝，抗UV防變色處理，前殼IP65防水;
2.工業級液晶屏，全視角，1000亮度陽光下可視，自動光感調節亮度;
3.10點電容觸摸屏，保護層是1.8mm鋼化玻璃（化學強化），硬度達到6H，表面AG防眩光處理;
4.EETI觸摸控制方案，在觸摸屏有水滴的情況下正常觸摸;
5.觸摸屏與液晶屏的貼合使用全貼合工藝;
6.采用工業級元件，7x24小時工作，支持寬溫工作-20-70℃。
在線表單
在線詢價PC System | |
處理器 Processor | 英特爾Core i3-5005U CPU 2.00GHz |
芯片組 Chipset | Broadwell-U |
內存Memory | 8GB DDR3 |
存儲Storage | 256GB SSD |
顯卡Graphics | Intel? HD Graphics 5500(128M) |
音頻Audio | Cmedia HS_100B USB音頻芯片 |
網卡Network | Realtek 8111F千兆網卡 |
WIFI | Intel? Dual Band Wireless-AC 7265 |
預安裝操作系統Preinstalled OS | Window10 pro |
I/O接口 External I/O Ports | |
USB | 2×USB2.0, 2×USB3.0 |
COM | 2×RS232 |
LAN | 2×RJ45 |
Video Outputs | 1×VGA, 1×HDMI |
Audio | 1 × 3.5mm Line-out, 1 × 3.5mm Line-in |
Power input | 1× 12V DC jack，1× 3-pins terminal block connector(9-36V) |
Other | 1×Power on/off button,1×WIFI antenna jack male |
液晶屏LCD Panel | |
尺寸Screen diagonal | 21.5" |
顯示區域Display active area | 476.64(H) × 268.11(V) mm |
分辨率Resolution | 1920*1080 |
寬高比Aspect ratio | 16:9 |
亮度Brightness (cd/m2) | 1200 nits |
亮度調節Brightness control | 自動光感 |
對比度Contrast ratio | 1000:1 |
可視角度View angle | 85°/85°/85°/85° (R/L/U/D) |
顏色數量Support color | 16.7M |
背光 Backlight | WLED, 30K hours |
觸摸屏Touch Panel | |
觸摸屏類型Touchscreen type | 10點投射式電容觸摸 |
表面硬度Surface hardness | 6H |
表面處理Surface treatment | AG防眩光 |
透光率Luminousness | ≥80% |
觸控IC Touch controller IC | EETI 81 |
支持系統Available touch drivers | Windows, Linux, Android, Mac |
觸摸屏貼合 Touch bonding | 全貼合 |
供電Power Supply | |
工作電壓 Working voltage | DC 9-36V |
功耗 Power consumption | 48W |
適配器Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |
外殼Enclosure | |
材質Material | 鋁合金面板，散熱板+鍍鋅冷軋板后殼 |
表面處理Finish | 鋁面框與散熱板：噴砂氧化抗UV防變色處理 后殼：靜電噴粉 |
顏色Color | Black |
安裝方式Mounting | VESA mount 100*100, Panel mount |
IP等級 IP rating | Front panel IP65 |
散熱 Cooling system | Passive - Fanless |
工作環境Operating Environment | |
溫度范圍Temperature range | 工作operating: -20 to 70°C, 存儲storage: -30 to 80°C |
相對濕度Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
抗振動Vibration | GB/T 2423.10-2019 |
抗沖擊 Shock | GB2423.5 |
抗電磁干擾EMC | Class B |
包裝信息Packing Details | |
Product weight | Net weight 8.5kg Gross weight 11kg |

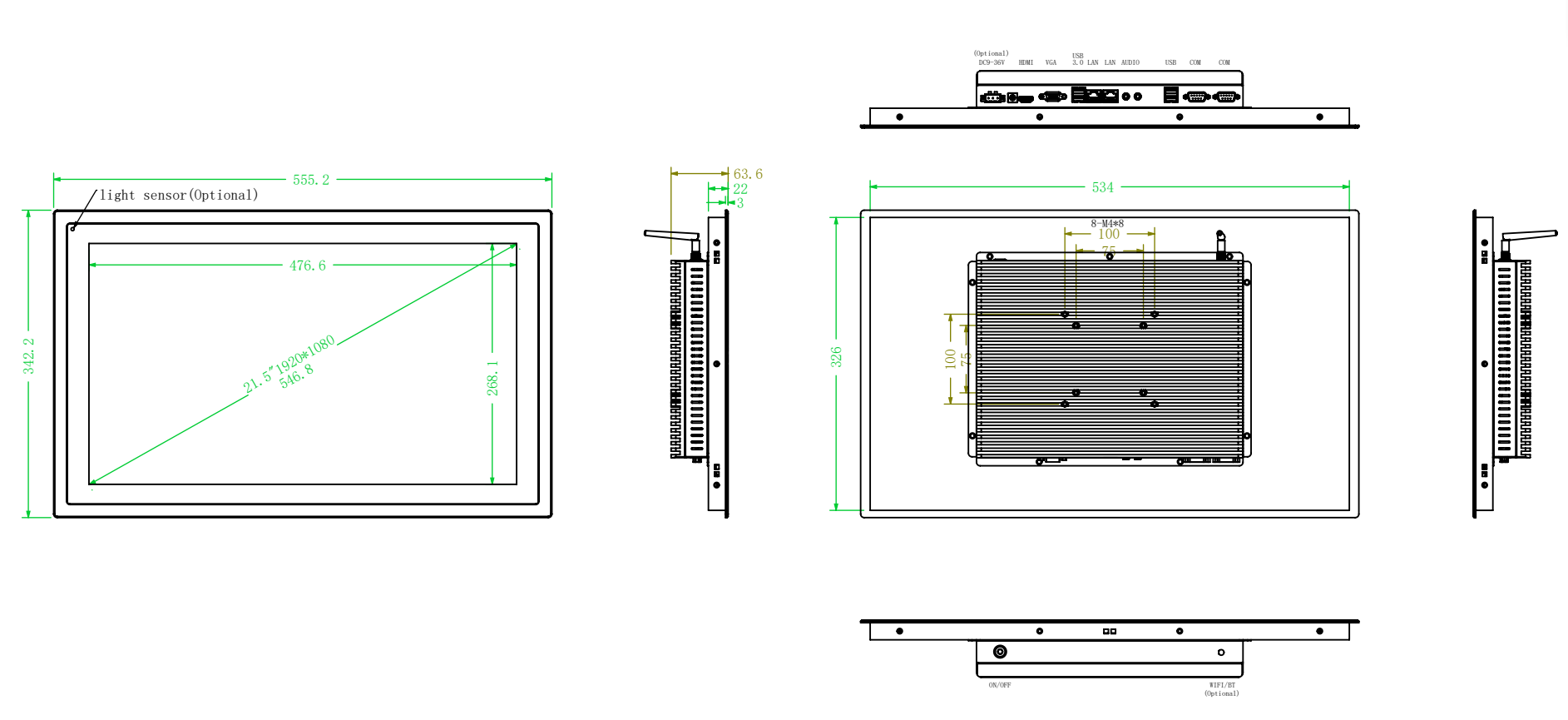

Product dimension | 555.2×342.2×63.6mm |
Packing info | 1pcs/ctn 65×17×45cm 11kg 2pcs/ctn 65×32×45cm 22kg |
Accessories | Power adapter, power cord, embedded mounting screws |
Other | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |

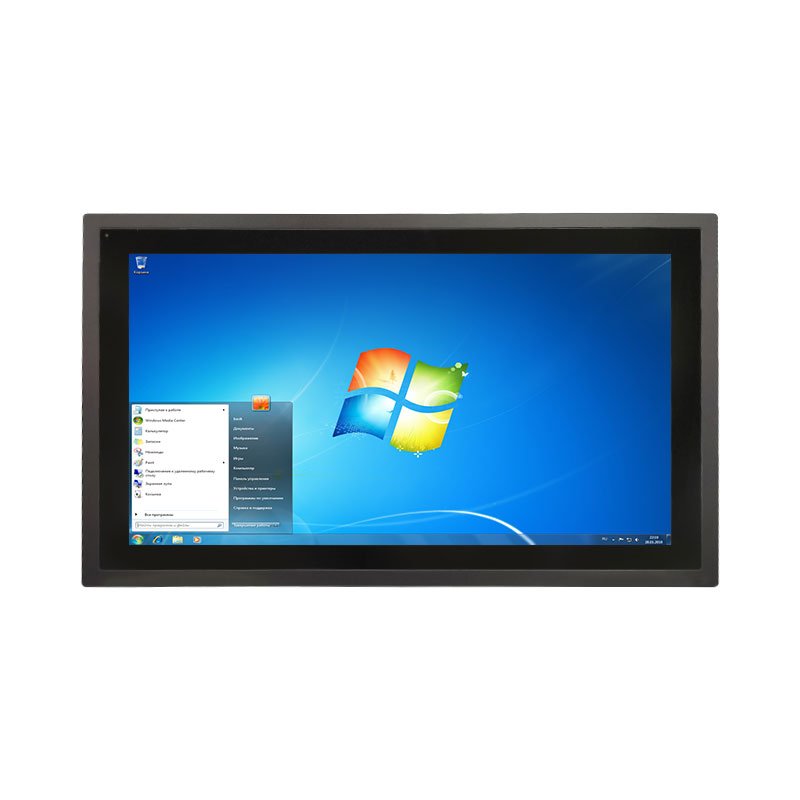

防紫外線21.5寸電容觸摸屏1000亮度工控一體機帶自動光感
1.鋁合金面框噴砂氧化工藝，抗UV防變色處理，前殼IP65防水;
2.工業級液晶屏，全視角，1000亮度陽光下可視，自動光感調節亮度;
3.10點電容觸摸屏，保護層是1.8mm鋼化玻璃（化學強化），硬度達到6H，表面AG防眩光處理;
4.EETI觸摸控制方案，在觸摸屏有水滴的情況下正常觸摸;
5.觸摸屏與液晶屏的貼合使用全貼合工藝;
6.采用工業級元件，7x24小時工作，支持寬溫工作-20-70℃。
在線表單在線詢價PC System | |
處理器 Processor | 英特爾Core i3-5005U CPU 2.00GHz |
芯片組 Chipset | Broadwell-U |
內存Memory | 8GB DDR3 |
存儲Storage | 256GB SSD |
顯卡Graphics | Intel? HD Graphics 5500(128M) |
音頻Audio | Cmedia HS_100B USB音頻芯片 |
網卡Network | Realtek 8111F千兆網卡 |
WIFI | Intel? Dual Band Wireless-AC 7265 |
預安裝操作系統Preinstalled OS | Window10 pro |
I/O接口 External I/O Ports | |
USB | 2×USB2.0, 2×USB3.0 |
COM | 2×RS232 |
LAN | 2×RJ45 |
Video Outputs | 1×VGA, 1×HDMI |
Audio | 1 × 3.5mm Line-out, 1 × 3.5mm Line-in |
Power input | 1× 12V DC jack，1× 3-pins terminal block connector(9-36V) |
Other | 1×Power on/off button,1×WIFI antenna jack male |
液晶屏LCD Panel | |
尺寸Screen diagonal | 21.5" |
顯示區域Display active area | 476.64(H) × 268.11(V) mm |
分辨率Resolution | 1920*1080 |
寬高比Aspect ratio | 16:9 |
亮度Brightness (cd/m2) | 1200 nits |
亮度調節Brightness control | 自動光感 |
對比度Contrast ratio | 1000:1 |
可視角度View angle | 85°/85°/85°/85° (R/L/U/D) |
顏色數量Support color | 16.7M |
背光 Backlight | WLED, 30K hours |
觸摸屏Touch Panel | |
觸摸屏類型Touchscreen type | 10點投射式電容觸摸 |
表面硬度Surface hardness | 6H |
表面處理Surface treatment | AG防眩光 |
透光率Luminousness | ≥80% |
觸控IC Touch controller IC | EETI 81 |
支持系統Available touch drivers | Windows, Linux, Android, Mac |
觸摸屏貼合 Touch bonding | 全貼合 |
供電Power Supply | |
工作電壓 Working voltage | DC 9-36V |
功耗 Power consumption | 48W |
適配器Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |
外殼Enclosure | |
材質Material | 鋁合金面板，散熱板+鍍鋅冷軋板后殼 |
表面處理Finish | 鋁面框與散熱板：噴砂氧化抗UV防變色處理 后殼：靜電噴粉 |
顏色Color | Black |
安裝方式Mounting | VESA mount 100*100, Panel mount |
IP等級 IP rating | Front panel IP65 |
散熱 Cooling system | Passive - Fanless |
工作環境Operating Environment | |
溫度范圍Temperature range | 工作operating: -20 to 70°C, 存儲storage: -30 to 80°C |
相對濕度Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
抗振動Vibration | GB/T 2423.10-2019 |
抗沖擊 Shock | GB2423.5 |
抗電磁干擾EMC | Class B |
包裝信息Packing Details | |
Product weight | Net weight 8.5kg Gross weight 11kg |
Product dimension | 555.2×342.2×63.6mm |
Packing info | 1pcs/ctn 65×17×45cm 11kg 2pcs/ctn 65×32×45cm 22kg |
Accessories | Power adapter, power cord, embedded mounting screws |
Other | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
